Rexroth New Aftermarket E-A2FM500/60W-VZH100VJ-Y Hydraulic Pump
Contact Us For A Quote Fast!
877-358-4376
877-358-4376
Model Code: E-A2FM500/60W-VZH100VJ-Y
Displacement: 500cm³/rev
Fluid: Mineral oil and HFD
Axial Piston Unit: Bent-Axis design, Fixed
Shaft Bearing: Standard Bearing
Series: 6
Index: 0
rotation: Bidirectional, viewed from drive shaft
seals: FKM (Fluor-caoutchouc)
Shaft: DIN 5480
Flange: 8-hole
Port Plate: SAE flange ports A and B at bottom (same side); Without valve
Speed Sensor: DSA speed Sensor mounted
Special Version: Special version for slew drives (standard with port plate 19)
Standard or Special Version: Standard Version with installation variants. Eg. T ports against standard open or closed

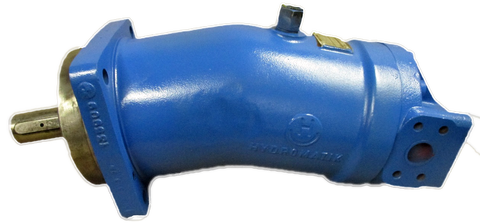

*Stock photo shown, your pump may vary from pump pictured
Displacement: 500cm³/rev
Fluid: Mineral oil and HFD
Axial Piston Unit: Bent-Axis design, Fixed
Shaft Bearing: Standard Bearing
Series: 6
Index: 0
rotation: Bidirectional, viewed from drive shaft
seals: FKM (Fluor-caoutchouc)
Shaft: DIN 5480
Flange: 8-hole
Port Plate: SAE flange ports A and B at bottom (same side); Without valve
Speed Sensor: DSA speed Sensor mounted
Special Version: Special version for slew drives (standard with port plate 19)
Standard or Special Version: Standard Version with installation variants. Eg. T ports against standard open or closed
*Stock photo shown, your pump may vary from pump pictured
